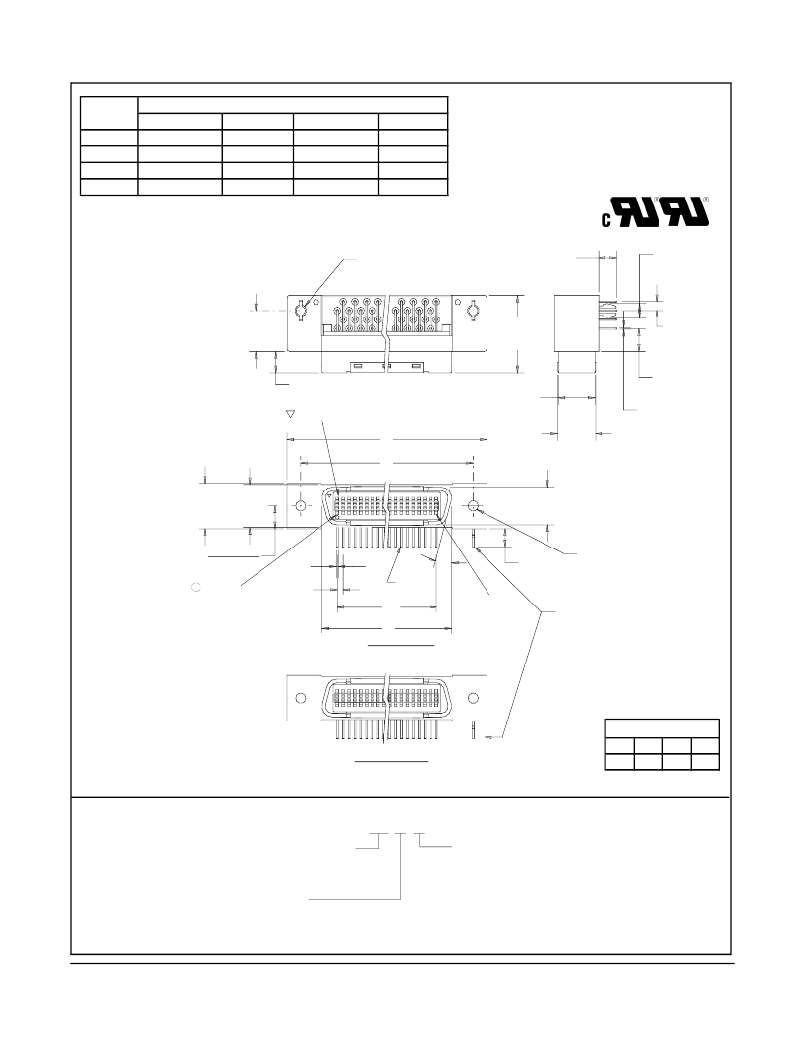

3M ? Mini D Ribbon (MDR) Connectors
.050 ″ Boardmount Through-Hole Right Angle Plug - Shielded
101 Series
Contact
Dimensions
Quantity
20
26
36
50
A
.450 [11.43]
.600 [15.24]
.850 [21.59]
1.200 [30.48]
B
.71 [18.1]
.87 [22.0]
1.11 [28.3]
1.46 [37.2]
C
1.081 [27.45]
1.231 [31.26]
1.481 [37.61]
1.831 [46.5]
D
1.31 [33.3]
1.46 [37.2]
1.71 [43.5]
2.06 [52.4]
.34
[8.6]
.18
[4.8]
Position 1
2X PCB Lockdown Thread
(see ordering information)
D
C
.65
[16.5]
.31
[7.9]
.15
[3.8]
.33
[8.4]
.12
[3.0]
3X .075
[1.91]
.188
[4.79]
.01
[0.3]
.38
[9.7]
.36
[9.1]
.26
[6.6]
Position
.19
[4.8]
.02
[0.5]
.050
[1.27]
.01
[0.2]
A
B
Normal Type
15 °
Last
Position
.15
[3.8]
2X Panel Thread
(see ordering
information)
Optional Ground Lock
2X
(see ordering
information)
(see ordering information)
In ch
[m m ]
T o leranc e U nless N o te d
Reverse Type
(see ordering information)
.0 .00 .000
inc h ± .1 ± .01 ± .005
[ ] D im e n sion s fo r R e fe re nce
O n ly
Ordering Information
101XX-X2X2PC
Contact Quantity
Mounting Feature
5 = Boardmount Right Angle Normal Type
7 = Boardmount Right Angle Reverse Type
Panel/Board Retention Feature
20, 26, 36 pos:
1 = M2.5 panel/M2.5 screw lock
B = M2.5 panel/ground lock
50 pos:
4 = 4-40 panel/4-40 screw lock
E = 4-40 panel/ground lock
TS-0620-B
Sheet 2 of 4
Use (M2.5 x 8 mm) screws to mount to panel with max. thickness of .079 [2.0].
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
